Compression Resin Transfer Molding (C-RTM)

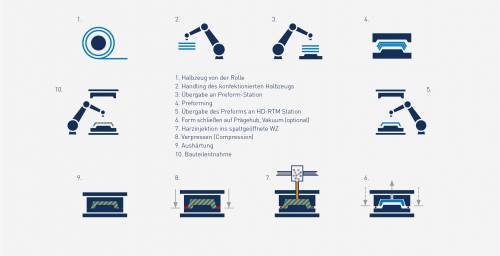

For the C-RTM process (compression resin transfer molding), the resin mixture is fed into the mold when it is slightly open instead of closed. Thus the mold is not completely closed during the feeding. Consequently, the preform is already partially sat

Ihr Nutzen

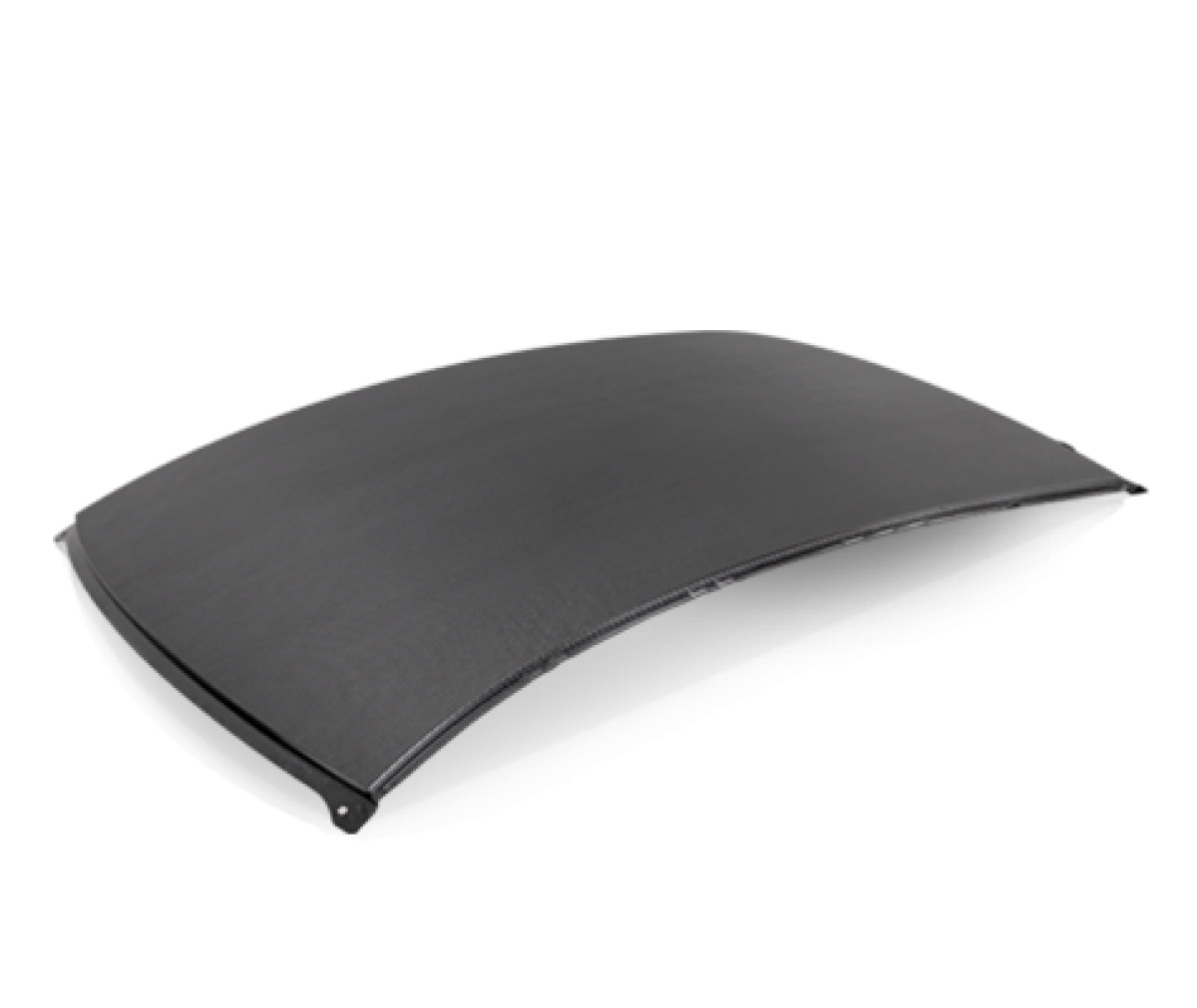

Lightweight components for challenging product specifications, approx. 50% lighter than steel
Paintable components for visible applications
Can be fully-automated and is suitable for series production (from preform production to post-mold processing)

Details

Process

Features

Virtually unidirectional reinforcement with endless fiber

High fiber contents of up to 50 percent

High-pressure technology allows the use of fast-curing systems
